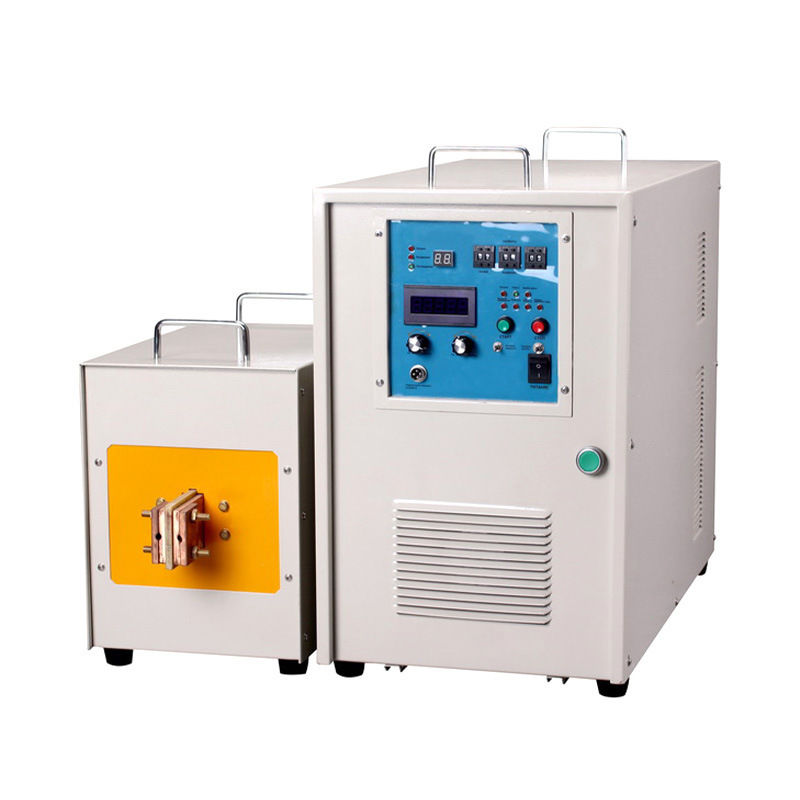

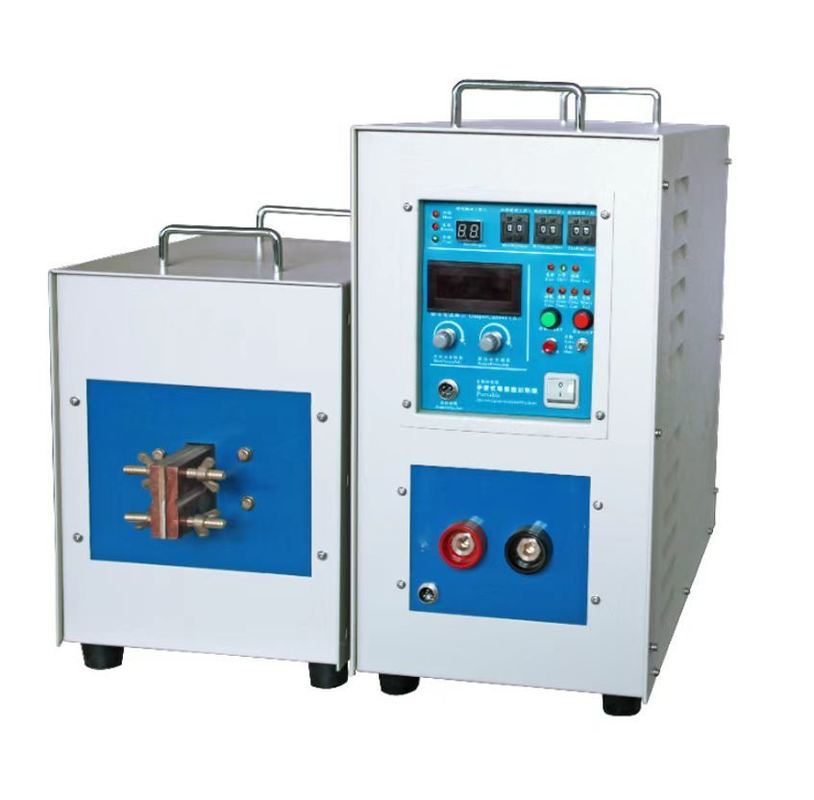

40kw Ultra High Frequency Induction Heating Machine with 400-1800A Output and 0.08-0.16Mpa Cooling for Electrical Test Set

40kw Ultra High Frequency Induction Heating Machine with 400-1800A Output and 0.08-0.16Mpa Cooling for Electrical Test Set

400-1800A Induction Heating Machine

0.08-0.16Mpa Electrical Test Set

50C High Frequency Induction Heater

สถานที่กำเนิด:

จีน

ชื่อแบรนด์:

YUYANG

ได้รับการรับรอง:

CE/CO

หมายเลขรุ่น:

YYS-40AB

ติดต่อเรา
ขอใบเสนอราคา
รายละเอียดสินค้า
แบบอย่าง:
YYS-40AB (สามเฟส)
อำนาจการทำงาน:
340-430V
อินพุตปัจจุบัน:
65A
กำลังไฟผันผวน:
10-50กิโลเฮิร์ตซ์
กระแสเอาต์พุต:
400-1800A
อัตราการไหลของน้ำหล่อเย็น:
0.08-0.16Mpa 9L/นาที
จุดป้องกันอุณหภูมิของน้ำ:
50C
ขนาดสินค้า:
หลัก:780*3708620มม. ; หม้อแปลงไฟฟ้า:510*260*410 มม
น้ำหนักสุทธิ:
หลัก:54กก. ; หม้อแปลงไฟฟ้า:32.5กก
เน้น:

400-1800A Induction Heating Machine

,

0.08-0.16Mpa Electrical Test Set

,

50C High Frequency Induction Heater

เงื่อนไขการชําระเงินและการจัดส่ง
จำนวนสั่งซื้อขั้นต่ำ
1 ชุด
ราคา
1000~3000
รายละเอียดการบรรจุ
กล่องไม้อัด
เวลาการส่งมอบ
6-10 วันทำการ
เงื่อนไขการชำระเงิน
, t/t
สามารถในการผลิต
20 ชุดต่อเดือน
สินค้าที่เกี่ยวข้อง
ติดต่อเรา
86-769-26622869
ติดต่อตอนนี้
คําอธิบายสินค้า
40kw Ultra High Frequency Induction Heating Machine Electrical Test Set
Integrating precise heating and electrical performance testing functions, it is specially designed for small and medium-sized metal workpieces, and is used to serve manufacturing, research and development, and quality inspection scenarios.
Technical Parameters
Parameter Value
Max Fluctuating Power 40KW
Fluctuating Frequency 10-50KHZ
Heating Current 400-1800A
Input Voltage (3Phase), 380V
The Flow Rate of Cooling Water 0.08-0.16Mpa, 9L/Min
Water Temperature Protecting Point 50°C
Product Features
  • Product line includes medium-frequency (15KVA~3000KVA) and high-frequency/ultra-high-frequency (3.2KVA~320KVA) equipment
  • Over 50 models available for various metal heating processes
  • Applications include quenching, surface heat treatment, annealing, welding, smelting, and more
Working Principle
  • Fully solid-state IGBT inverter module technology imported from Germany
  • Generates strong alternating magnetic field through induction coil
  • Eddy currents on workpiece surface enable rapid heating and instant temperature rise
Applications
  • Manufacturing: Surface hardening of gears/tooling, brazing of dissimilar metals, thermal assembly of micro-components
  • Quality Inspection: High-temperature testing of electrical terminals/motor windings
  • Research and Development: Thermal conductivity testing, small-scale melting of precious metals
